Topaz Series
Indoor fixed installation series,several size options, high color uniformity,fine quality, display perfect images.
Weight
Brightness

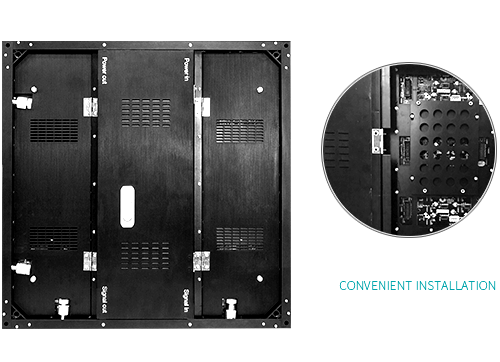

Fast installation, super light & slim, and seminal location pins, makes the installation faster and easier.

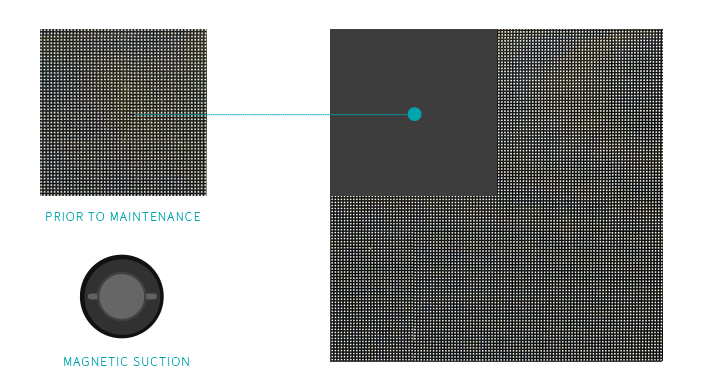

High-end module, monitor function and calibration memory in the magnetic module.
and modules are identical(no difference between left and right).
High uniformity and wide angle vision give you a perfect picture.
which is suitable for all kinds of occasions.
| Model No. | UT2.9（Indoor） | UT3.9（Indoor） | UT4.8（Indoor） | UT6.25（Indoor） |
|---|---|---|---|---|
| Pixel Pitch | 2.9mm | 3.9mm | 4.8mm | 6.25mm |
| LED | SMD2020 | SMD2020 | SMD2020 | SMD3528 |
| Module Size（mm） | 250mm * 250mm | 250mm * 250mm | 250mm * 250mm | 250mm * 250mm |
| Module Resolution（dots/㎡） | 84 * 84 | 64 * 64 | 52 * 52 | 40 * 40 |
| Pixel Density | 112,896dots/m² | 65,536dots/m² | 43,264dots/m² | 25,600dots/m² |
| Cabinet Size（mm） | 500 * 500/500 * 1000 | 500 * 500/500 * 1000 | 500 * 500/500 * 1000 | 500 * 500/500 * 1000 |
| Cabinet Resolution（dots/㎡） | 168 * 168/168* 336 | 128* 128/128 * 256 | 104 * 104/104 * 208 | 80 * 80/80* 160 |
| Support hanging or not | YES | YES | YES | YES |
| Best Viewing Angle | H：140° W：140° | H：140° W：140° | H：140° W：140° | H：140° W：140° |
| Max Power Consumption | 840 W/m² | 840 W/m² | 840 W/m² | 840 W/m² |
| Average Power Consumption | 280 W/m² | 280 W/m² | 280 W/m² | 280 W/m² |
| Grey Scale | 14 bits | 14 bits | 14 bits | 14 bits |
| Driving Method | 1/21scan | 1/16scan | 1/13scan | 1/10scan |
| Refresh Rate | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz |
| Brightness（cd/㎡） | ≥1000 | ≥1000 | ≥1000 | ≥1000 |
| Protection Level | IP20 | IP20 | IP20 | IP20 |
